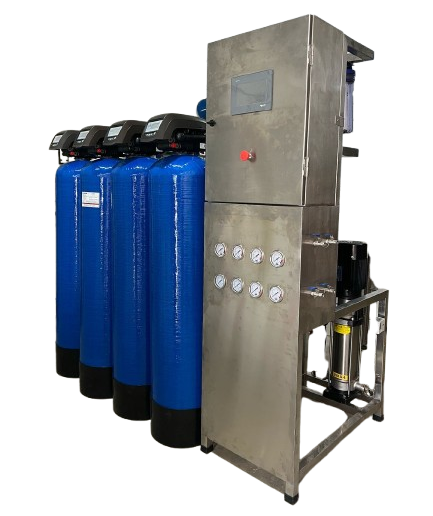

Reverse Osmosis Water Purification System
The ThriveRO Single Pass and Double Pass RO Water Purification System intended to be used for supplying reverse osmosis water to hemodialysis machine used in hemodialysis treatment. The system that used to prepare a dialysate concentration complied with AAMI grade water. The system is designed to meet all current standards for dialysis quality water.
Feature & Benefits
Consistent and safe
- Complies with AAMI/ISO 13485:2016
- Complies with Medical Device Authority
- Continuous pressure monitoring with alarm monitoring
- Raw and dialysis water conductivity
- All flow rates
- Continuous pressure monitoring
- Low inlet pressure alarm and pump shutdown
- UV sterilization (optional)
Innovative design
- Space saving design LCD touch
- Screen control panel System alarm
- Message Stainless steel cabinet
- Water saving system (optional)
User friendly
- Easy to operate Touch Screen Pane
- Automatic backwash cycle
- Sampling valve for soft and dialysis water
Note: This information is based on our latest state of knowledge and is intended to provide only general notes on our products. At any time, we reserve the right to make modifications due to new developments. Any existing industrial property rights must be observed. The quality of our products is guaranteed under our conditions of sale.
Contact us today to learn more about our medical solutions and services for hospitals and dialysis centers.
Specifications
| MODEL | DWS RO 10 | DWS RO 15 | DWS RO 20 | DWS RO 25 | DWS RO 30 | DWS RO 35 | DWS RO 40 |
|---|---|---|---|---|---|---|---|
|
Permeate |
10 L/min |
15 L/min |
20 L/min |
25 L/min |
30 L/min |
35 L/min |
40 L/min |
|
Rated capacity |
4400GPD |
6600GPD |
8800GPD |
11,000GPD |
13,200GPD |
15,400GPD |
17,600GPD |
|
Membrane |
2 Units |
3 Units |
4 Units |
5 Units |
6 Units |
7 Units |
8 Units |
|
Water pressure |
150-250 PSI |
||||||
|
Power supply |
415 VAC/50 Hz 40 Amp |
||||||
|
Quality |
Depend on inlet water quality. The system design to meet MOH guidelines and AAMI Standards for
Haemodialysis. |
||||||
